Milk Cream Separator Machine 5000-10000L/H SUS304 220V/380V
| 起源の場所 | 江蘇、中国 |
|---|---|
| ブランド名 | Juneng |
| 証明 | CE Certificate |
| 最小注文数量 | 1 |
| 価格 | $35,000-37,200 |
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 電圧 | 220V/380V | 力 | 15000W |
|---|---|---|---|
| 重さ | 1600kg | 寸法 | 1800*1200*1750mm |
| 材料 | SUS304/SUS316 | 容量 | 5000-10000L/h |
| 関数 | 液体液体固体分離 | 処理 | 牛乳スキミング |
| モデル | DHNZ360 | 構造 | SS304で覆われたエッジ |
| 排出 | 自動 | コアコンポーネント | PLCのエンジン、軸受け、変速機、モーター、ギヤ |
| 回転速度 | 高い | ノイズレベル | より低い |
| 効率の分離 | 完璧 | ||
| ハイライト | Milk cream separator machine 5000L/H,Milk cream separator SUS304,Milk cream separator 220V 380V |
||
製品の説明

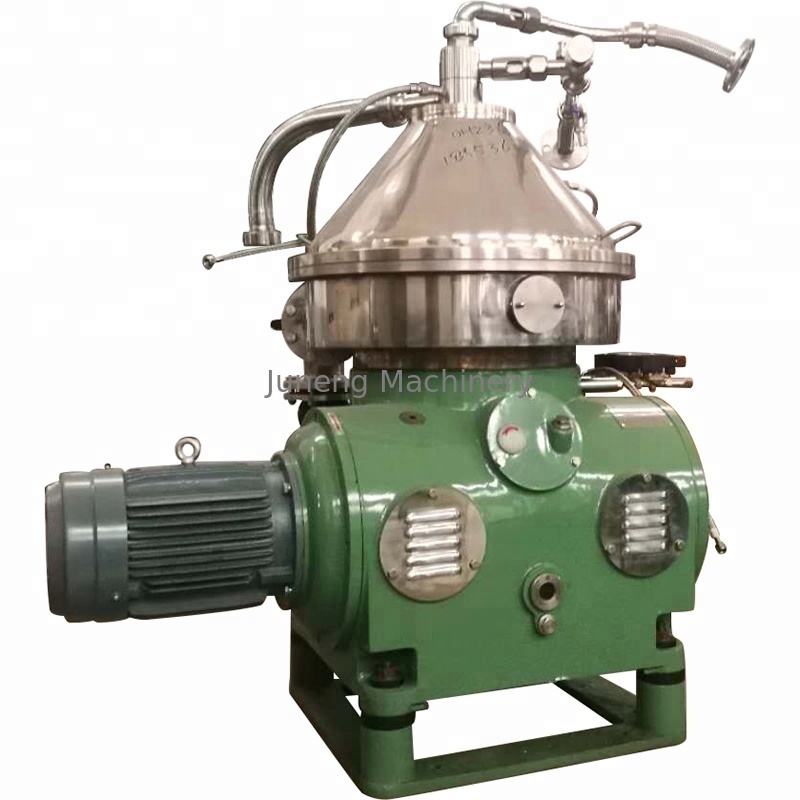

Disc Stack Milk Cream Separator Machine
Product Application
Juneng dairy separator features large capacity, excellent deoiling performance, high efficiency, and lower energy consumption. The advanced inlet and outlet design ensures gentle treatment throughout the separation process, preventing destructive air from entering and maintaining product quality.
Milk products vary widely in fat content and type, including butter, cheese, quark, yogurt, and many other dairy products.
Main Features
- High rotating speed
- Operating stability
- Completely sealed inlet and outlet system
- Lower noise operation
- Perfect separation efficiency
Technical Specifications
| Model | DHNZ360 |
| Material | SS304 |
| Structure | Edge covered with SS304 |
| Function | Liquid-liquid-solid separation |
| Application | Milk skimming |
| Capacity | 1000-3000 liters per hour |
| Discharge | Automatic |
Machine Parts
Name: Main Parts of Drum
Brand: Juneng
Origin: China
From left to right are discs, drum cover, disc gland, and slide piston.
Name: Shaft
Brand: Juneng
Origin: China
The vertical shaft transmits power and is equipped with speed step-up gear (small spiral gear) and high-speed rotating parts. The cross shaft transmits motor power to the vertical shaft and main parts of the drum.
Name: Assembled Drum
Brand: Juneng
Origin: China
The drum is the high-speed rotating component that separates materials and is the heart of the separator.
Name: Equipment Base
Brand: Juneng
Origin: China
The underframe supports the entire separator and connects to the base. All four supporting feet are equipped with damping rubber pads to effectively isolate vibration between the separator and building.
Certifications
We have obtained numerous certifications including:
- ASME U (Certificate No.: 38793)
- ISO 9001:2015 (Certificate No.: CN1299-QC)
- ISO 14001:2015 (Certificate No.: CN1299-EC)
- ISO 45001:2018 (Certificate No.: CN1299-SC)
- BV and CE certifications
Our Service
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory viewing available
After-Sales Service
- Installation and operation training
- Overseas engineer support
Packing & Delivery
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
Standard packaging includes wooden boxes (Size: L*W*H). For European exports, wooden boxes are fumigated. For tight containers, we use PE film or accommodate special customer requests.
